VS-MA-GTMH-500-2 Macro channel laser bar repairment for diode laser epilator

VS-MA-GTMH-500-2 Macro channel laser bar repairment for diode laser epilator

VS-MA-GTMH-500-2 Macro channel laser bar repairment for diode laser epilator Details

VS-MA-GTMH-500-2 Macro channel laser bar repairment for diode laser epilator Description:

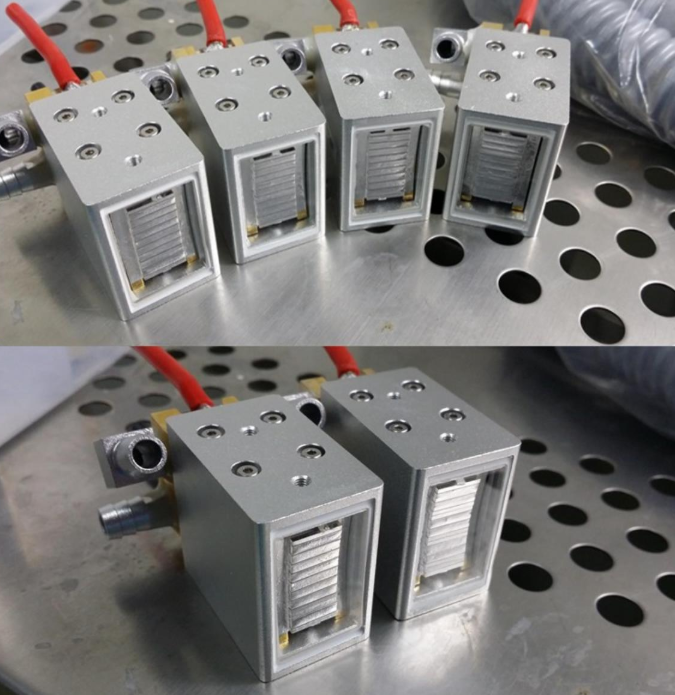

This diode laser stack 10bar Model VS-MA-GTMH-500-2 for hair removal which has 10bars with a aluminum shell. The straight water connectors are on the bottom with extra 2 small water connector for peltier cooling. Electrodes are on the back of stack.

This diode laser stack usually burn out after working 1year. Then it need to be refresh. Or you can buy a new one to replace the old one.



VS-MA-GTMH-500-2 Macro channel laser bar repairment for diode laser epilator Advantages:

>Save Money. Replace the broken diode stack only. Low cost and convenient

>Long lifetime.  we use diode laser bars from Germany. The newest Ausn mounting technology will be applied when repairing. After repair. The handpiece will be as a new one. lifetime is much longer than before

>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.



VS-MA-GTMH-500-2 Macro channel laser bar repairment for diode laser epilator Specifications:

Model No.

VS-MA-GTMH-500-2

Application

laser hair removal handpiece Repair And Replacement

Operation Mode

CW

Power per submounts

50W

Number of submounts in one stack

10bars

Central wavelength at 25℃

808 ± 5nm

Typical Operation current

40A

Maximum Operating current

50A

Typical Threshold current

8A

Maximum Operating Voltage

<20V

Fast Axis Divergence (FWHM)

39º

Slow Axis Divergence (FWHM)

Operation Condition

non-condensing atmosphere, cleaning room

Expected lifetime

10 millions shots

Typical pitch per bar

2mm

Cooling requirement



Flow rate

>3.5L/min

Water Temperature

27+-3°C

Water Quality

pure water

cooling system

Do not use any material that combination with copper would form galvanic elements

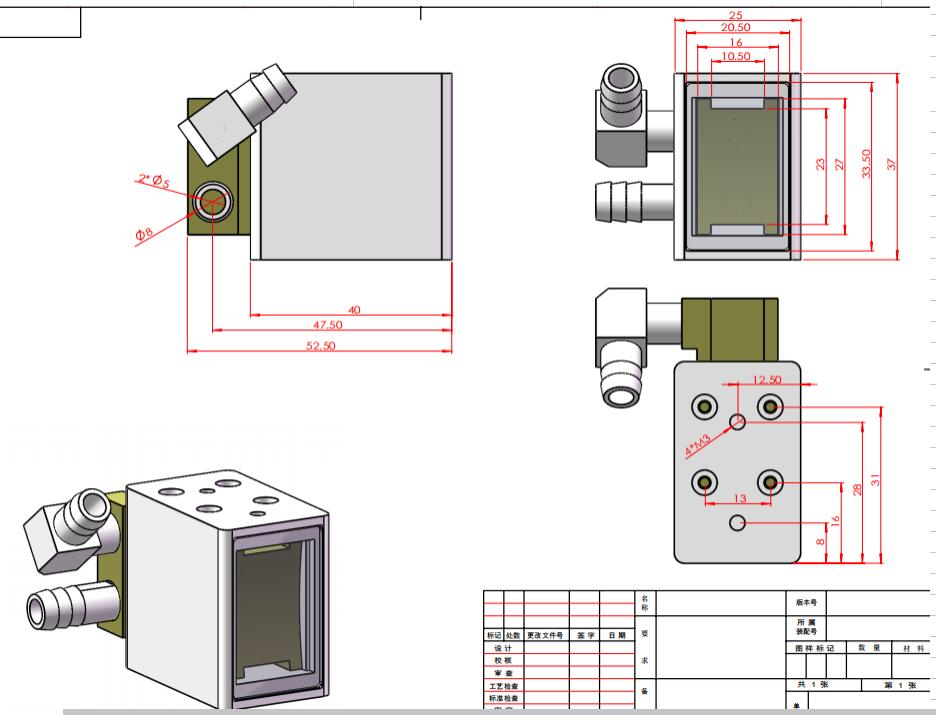

VS-MA-GTMH-500-2 Macro channel laser bar repairment for diode laser epilator Dimension Scheme:



Any more interest please contact Kelly Lasers By whatsapp 0086-13522789042
