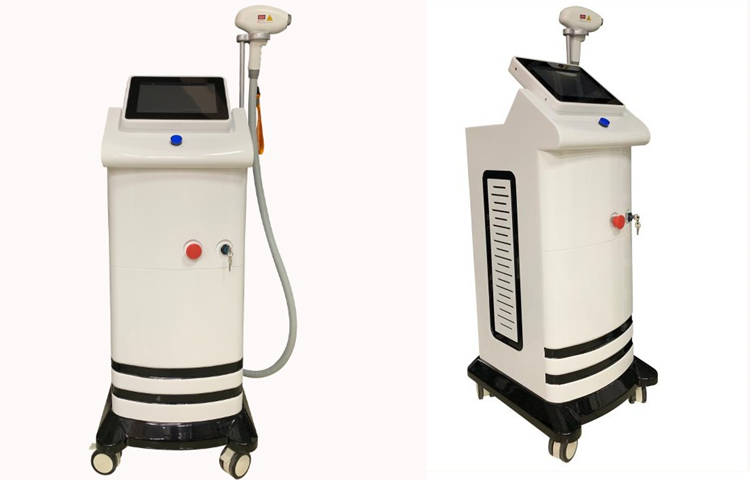

V13 Vertical 900W high power non-channel laser epilation machine
Theory of Vertical 900W high power non-channel laser epilation machine
808 diode laser freezing point is based on selective solar-thermal dynamics, through adjusting the wavelength, energy and pulse width of the laser through the skin to the hair root hair follicles, the heat energy is absorbed and break down the follicle tissue, making hair regeneration. The system of quick freezing point hair removal apply for refrigeration protection, It can make the temperature up to -5℃,It solves a lot difficulties. At the same time, it is safe, quick and permanent technology.
Hair removal – Faster, painless and better.
√ 755nm: specific effective for Blonde hair, Fine hair.
√ 808nm: golden standard wavelength for all hair types.
√ 1064nm: specific effective for dark, tanned skin.
As a integrated solution, triple wavelengths diode laser combines the benefits of all 3 wavelength 808nm, 755nm and 1064nm.
Target different tissue depths as well as structures within hair follicles. Thus to the greatest extent to ensure effective result and painless.
Advantages of Vertical 900W high power non-channel laser epilation machine
1. High quality spare parts –all the core components are imported .
Swizerland imported micro-channel laser bars.
Germany imported semiconductor cooling system, insures the machine continuously working 24 hours without any stop.
USA CPC water connector & Germany Harting electronic connector.
Italy water pump, no noise and larger water flow for better cooling, prolong laser life.

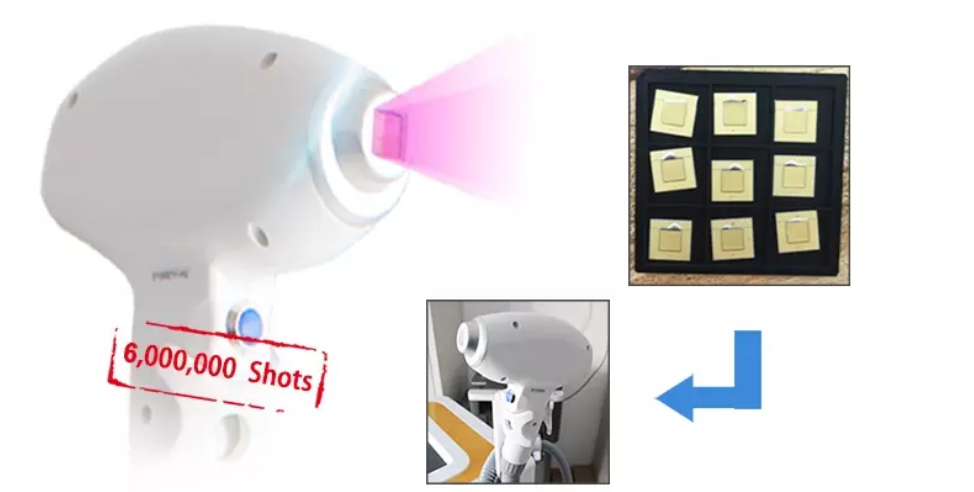

2. Newly designed diode laser handle, more stable and convenient to use.
3. High quality water filter and testmeter, insures the high purity for the water, prolong the lifetime of laser bar.
4. Long continuously working one day with constant temperature
5. Sliding treatment way, spot size 15*15mm, remove hair fastly and effectively
6. Automatical alarm system: once any problems happens, machine will stop working immediately. Protect the patient and machine firstly.
7. Medical CE approval high quality promised.
Vertical 900W high power non-channel laser epilation machine specifications:
| wavelength | 808nm or 3 wave optional | OEM customized service |
| Working frequency | 1~10hz | Maximum frequency 20 Hz |
| Energy density | 1-120j/cm2 | 1-150j/cm2 optional |
| Handle piece cooling | TEC+sapphire | Sapphire size customizable |
| TEC cooling | 12V 6A | TEC power customizable |
| Spot size | 15cm×15cm or 25 x31mm | Spot size and window of light customizable |
| Output power | 600w, 900w. 1200w | Laser power available |
| Laser bars | Germany laser Jenoptik，150W/piece | |
| Pulse width | 5ms~400ms | 0~1000ms customizable |
| Output mode | Pulse output | Pulse output |
| Language | Standard English | customizable |
| display | 8’ color touch screen | 10.4’ optional |
| Protective temperature | 55℃ interface select | customizable |
| Water pump | DP-60 diaphragm rods 12V | imported pump optional |
| Flow sensor | At least 3.5L/min | |
| Water level switch | Test water level | |
| Cooling system | 240×120cooling line(2pc)，18 pcs channel | Compressor plan，TEC plan |
| Cooling fan | 4pcs fans，speed 3150r/min | 12v fans |
| Case material | ABS shell/metal shell | customizable metal shell |
| Inter structure | White zinc hob/color zinc hob | customizable |
| Water tank volume | vertical3.6L/table type 2.5L | customizable |
| Environmental moisture | < 80% | < 80% |
| Environment temperature | Air conditioning room，temperature≤35℃ | |
| voltage | 220V | 110Vavailable |

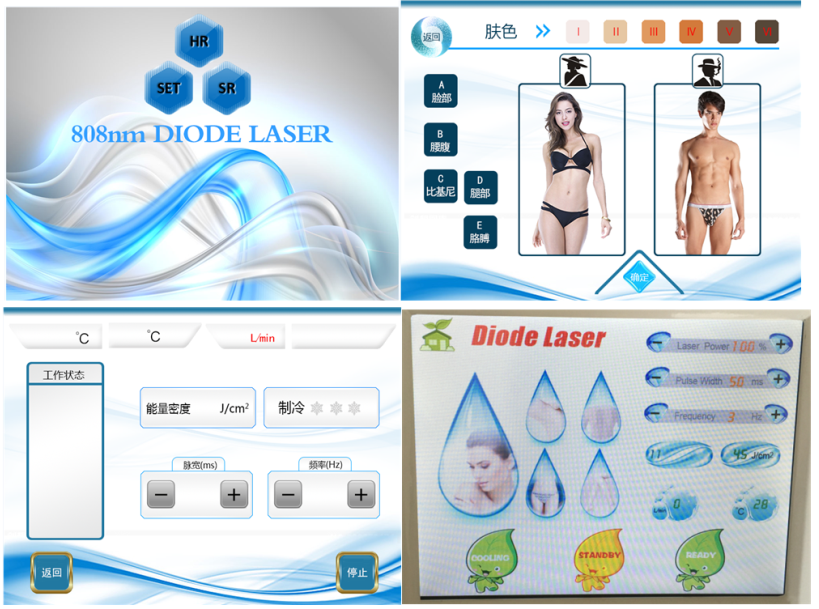

Vertical 900W high power non-channel laser epilation machine software:
Any interest please contact kelly laser whatsapp 0086-13522789042
