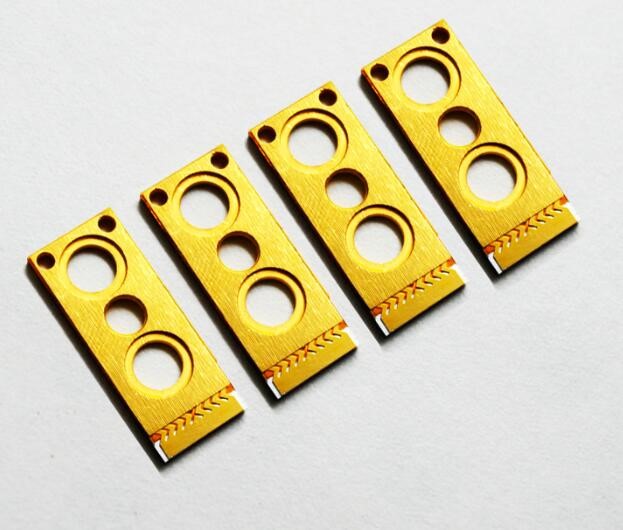

single bar micro channel 100W diode laser bar from Coherent Jenoptik Brand

This single bar micro channel 100W diode laser bar from Coherent Jenoptik Brand is used for repairing diode laser hair removal machine .Also it can be used for industrial pumping and laser coupler. But you should confirm the size accurate before order and this kind of parts usually have speciality and need matching well with the original laser stack or laser handle well.

(1) Feature single bar micro channel 100W diode laser bar from Coherent Jenoptik Brand

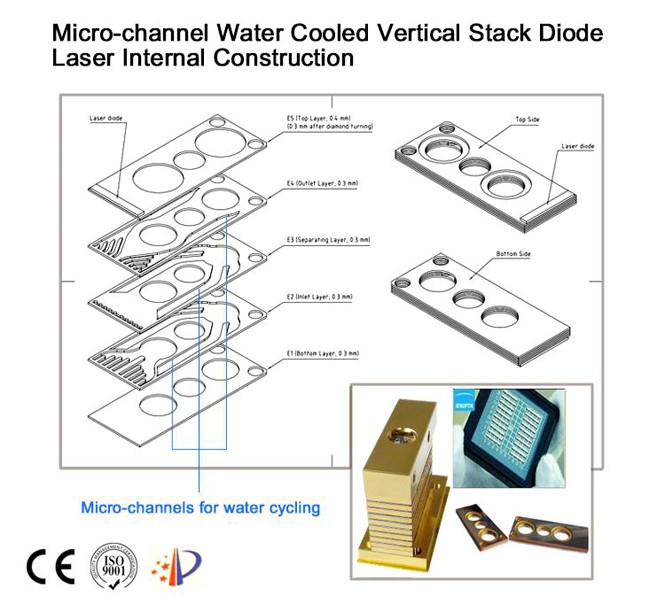

Micro channel cooler Germany imported

>lifetime: over 10000 hours

>Special design for micro channel diode laser machine



(2)Advantages single bar micro channel 100W diode laser bar from Coherent Jenoptik Brand

1.High laser power

2.High efficiency

3.Long lifetime high reliability

4.Excellent beam characteristics







Specification single bar micro channel 100W diode laser bar from Coherent Jenoptik Brand

Wavelength(cw)	808 ± 3 nm
Optical Output Power	100 W
Operation Mode	cw, switched
Fast Axis Divergence (FWHM)	36°
Slow Axis Divergence at 100w (FWHM)	6°
Spectral Bandwidth (FWHM)	2nm
Slope Efficiency	1.2W/A
Threshold Current	15A
Operating Current	50A（35-40A）
Operating Voltage	1.8V
Degree of TE Polarization(Min)	98%
EO Conversion Efficiency	56%
Typical pitch per bar	1.8mm
Cooling:	Flow rate: 0.3L/min ±10% / bar Water Temperature: 15-25 ℃ Water Quality: Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm cooling system: Do not use any material that combination with copper would form galvanic elements

* Mounted on a heat sink with Rth = 0.5 K/W, coolant temperature 25 °C, operating at nominal power

* Full width at 95 % power content



Note: Nominal data represents typical values.

Safety Advice:

* Laser bars are the active components in high-power diode lasers in accordance to IEC standard class 4 laser products.

* As delivered, laser bars cannot emit any laser beam. The laser beam can only be released if the bars are connected to a source of electrical energy. In this case, IEC-Standard 60825-1 describes

* the safety regulations to be taken to avoid personal injury.

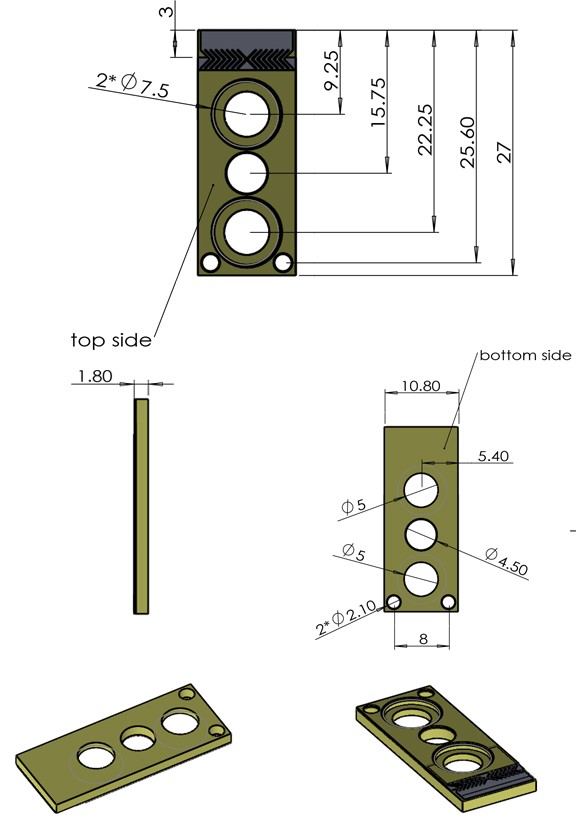

Dimension single bar micro channel 100W diode laser bar from Coherent Jenoptik Brand

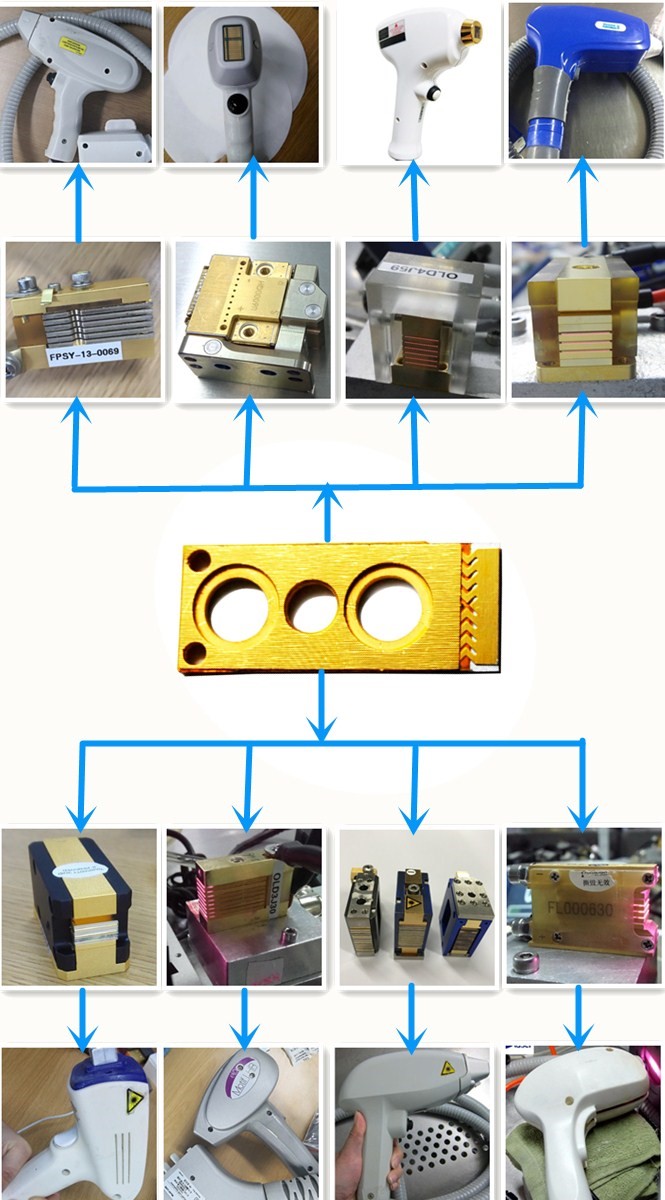

Application single bar micro channel 100W diode laser bar from Coherent Jenoptik Brand

For various brands diode laser handle repairing use
