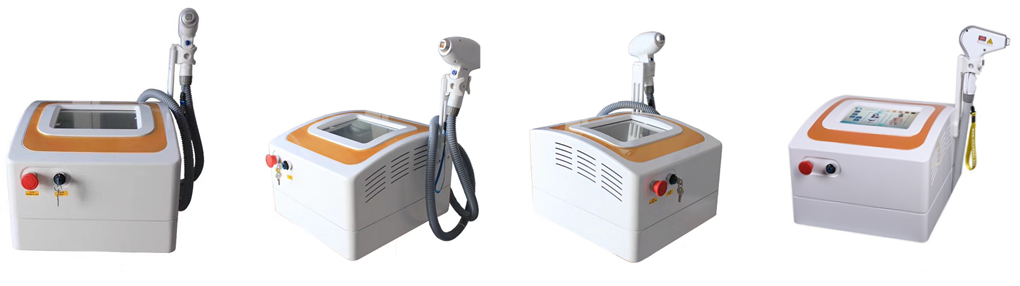

P9 Portable Vcsel diode chip 450W laser hair removal machine

P9 Portable Vcsel diode chip 450W laser hair removal machine with 808nm, 755nm and 1064nm

Working Theory Portable Vcsel diode chip 450W laser hair removal machine:

Hair removal – Faster, painless and better.

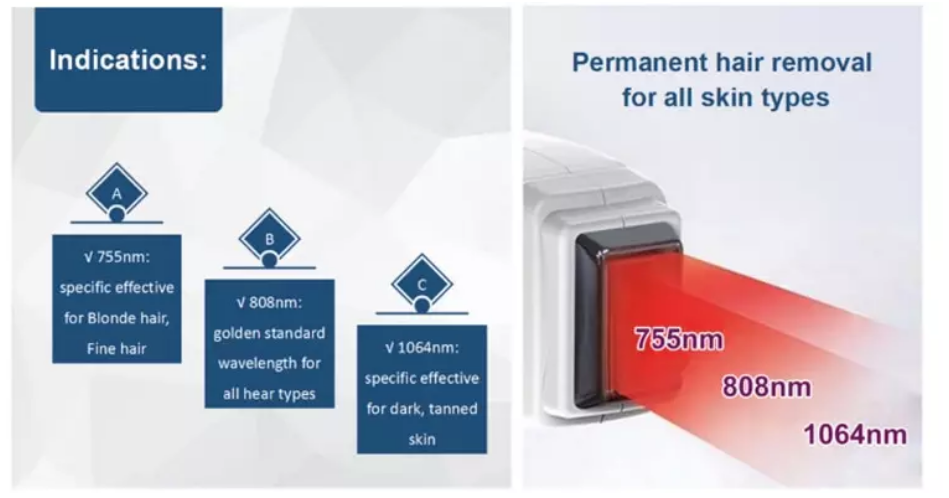

√ 755nm: specific effective for Blonde hair, Fine hair.

√ 808nm: golden standard wavelength for all hair types.

√ 1064nm: specific effective for dark, tanned skin.

As a integrated solution, triple wavelengths diode laser combines the benefits of all 3 wavelength 808nm, 755nm and 1064nm.

Target different tissue depths as well as structures within hair follicles. Thus to the greatest extent to ensure effective result and painless.

Portable Vcsel diode chip 450W laser hair removal machine advantages:

1.High quality spare parts –all the core components are imported .
Swizerland imported micro-channel laser bars.
Germany imported semiconductor cooling system, insures the machine continuously working 24 hours without any stop.
USA CPC water connector & Germany Harting electronic connector.
Italy water pump, no noise and larger water flow for better cooling, prolong laser life.

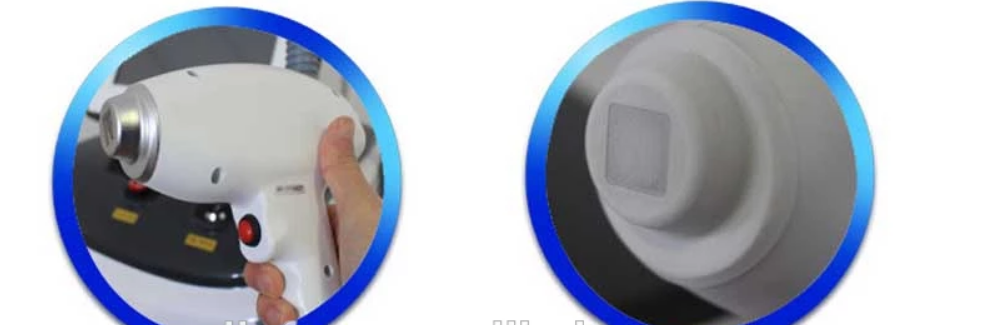

2. Newly designed diode laser handle, more stable and convenient to use.

3. High quality water filter and testmeter, insures the high purity for the water, prolong the lifetime of laser bar.
4. Long continuously working one day with constant temperature
5. Sliding treatment way, spot size 15*15mm, remove hair fastly and effectively
6. Automatical alarm system: once any problems happens, machine will stop working immediately. Protect the patient and machine firstly.

Portable Vcsel diode chip 450W laser hair removal machine specifications:

Wavelength 808nm or trio laser optional
Working frequency 1~10hz
Energy density 1-120j/cm2
Handle piece cooling TEC+sapphire
TEC cooling 12V6A
Spot size 15cm×15cm, 20*25cm, 25 x31mm
Output power 450W, 600w,900w
Laser chips Germany laser Jenoptik
Pulse width 5ms~400ms
Output mode Pulse output
Language As the customer’s requirment
display 8’ color touch screen
Protective temperature 55℃ interface select
Water pump DP-60 diaphragm rods 12V
Flow sensor 3.5L/min flow requirement
Water level switch Test water level
Cooling system 240×120cooling line(2pc),18 pcs channel
Cooling fan 4pcs fans,speed 3150r/min
Case material ABS shell/metal shell
Inter structure White zinc hob/color zinc hob
Water tank volume vertical3.6L/table type 2.5L
Environmental moisture < 80%
Environment temperature Air conditioning room,temperature≤28℃
voltage 220VA / 110VA

Any more question please contact kelly laser 0086-13522789042
