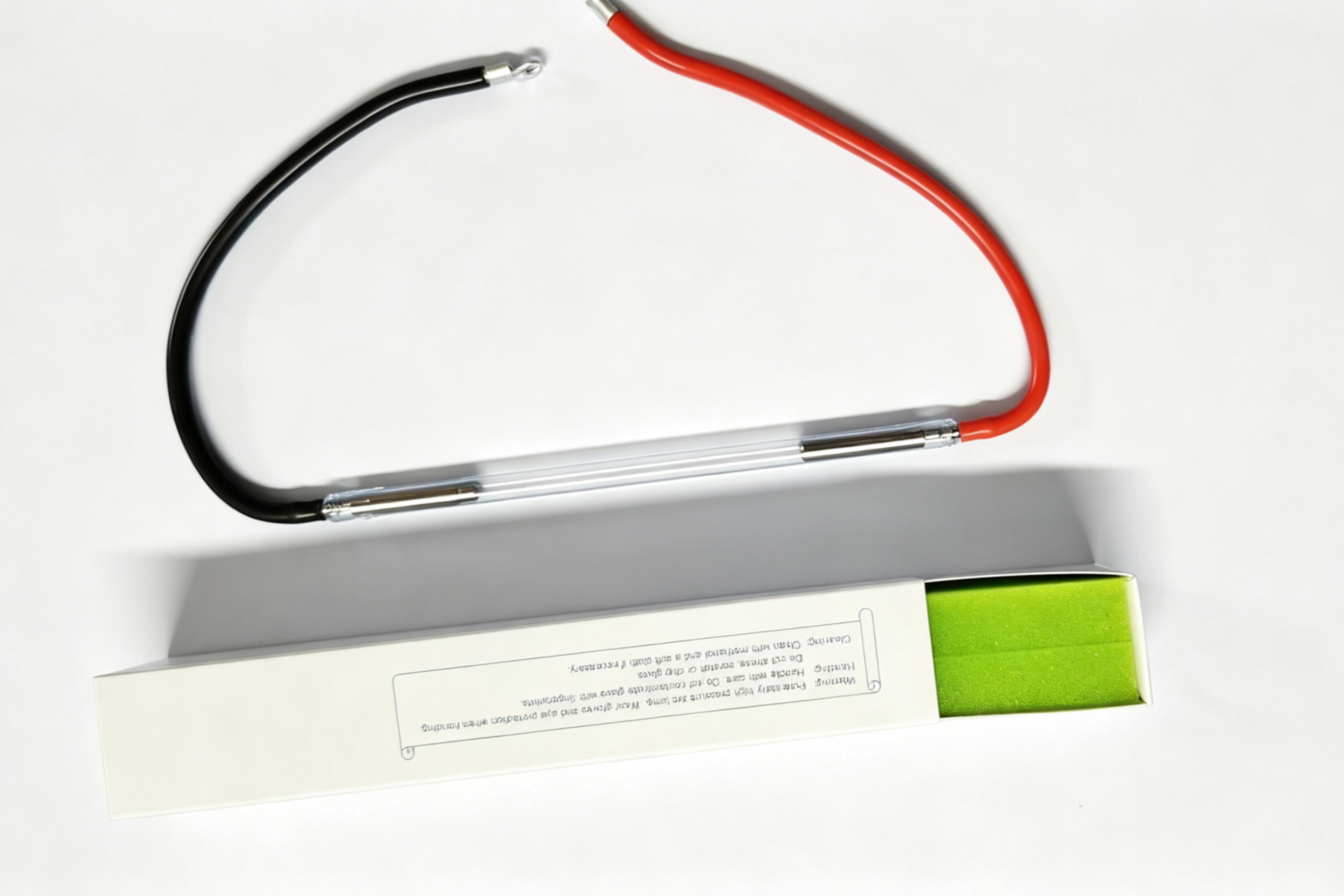

IPL Xeon Flash Lamp UK Firstlight 7*65*130 (code:F1404)

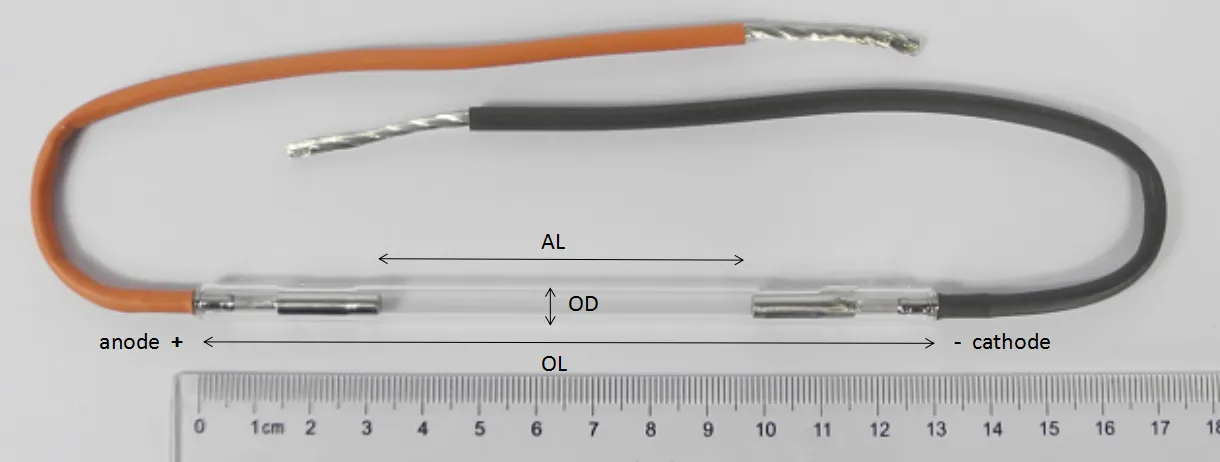

Dimension parameters

Lamp’s bore(ID) = 5mm

Lamp’s Outside dia.(OD) = 7mm

Lamp’s Arc length (AL) = 50±1.5mm

Lamp’s Body length(BL) = 115±2mm

O-ring centre (OC) =99mm

Pole dia. (PD) =2mm

Overall length (OAL)=475mm

Wire length (WL) = 180mm

Envelope material

CDQ(cerium doped quartz)

Gas fill

Xe (xenon)

Gas Press

0.5~1.5Mpa / 450 Torrs

Cooling type

flowing water

Operating type

pulse

Connector type

wire

Technical Parameters

maximum average power=1,570W

maximum peak current =800A

operating voltage = 1,750V(max)

operating voltage =500V(min)

minimum trigger voltage =16KV

minimum trigger pulse=0.4μs

impedance constant= 13.3 Ko(Ω.A)

explosion energy constant = 61,500 (W./S)

(for keslaser, etc…)
