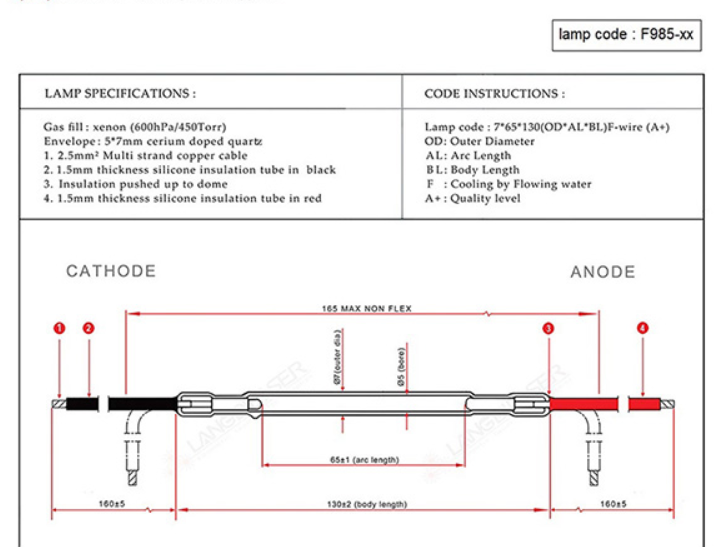

Dimension parameters

Lamp’s bore(ID) = 5mm

Lamp’s Outside dia.(OD) = 7mm

Lamp’s Arc length (AL) = 65±1.5mm

Lamp’s Body length(BL) = 130±2mm

O-ring centre (OC) =114mm

Pole dia. (PD) =2mm

Overall length (OAL)=490mm

Wire length (WL) = 180mm

Envelope material

            CDQ(cerium doped quartz)

Gas fill

Xe (xenon)

Gas Press

0.5~1.5Mpa / 450 Torrs

Cooling type

flowing water

Operating type

pulse

Connector type

wire

Technical Parameters

maximum average power=2,044W

maximum peak current =800A

operating voltage = 1,750V(max)

operating voltage =600V(min)

minimum trigger voltage =16KV

minimum trigger pulse=0.4μs

impedance constant= 17.16 Ko(Ω.A)

explosion energy constant = 79,820 (W./S)
