FL 500W micro channel laser stack for repairing Anchrofree laser epilator
FL 500W micro channel laser stack for repairing Anchrofree laser epilator

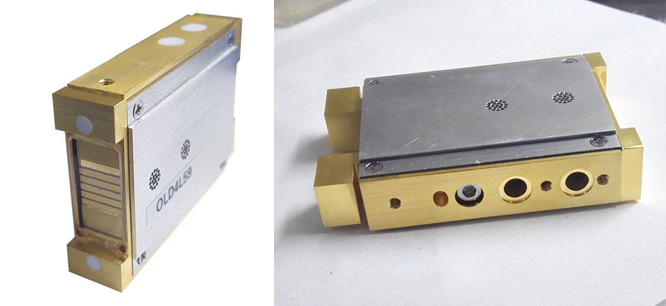

FL 500W micro channel laser stack for repairing Anchrofree laser VS-MI-FL-500 pictures:
FL 500W micro channel laser stack for repairing Anchrofree laser VS-MI-FL-500 Description:
This diode laser stack VS-MI-FL-500 is for replacement of micro channel diode laser stack of 500W laser hair removal devices from anchrofree laser epilator. The original diode is from Dilas diode stack or FL stack and we will make the same for diode laser bar replacement.
FL 500W micro channel laser stack for repairing Anchrofree laser VS-MI-FL-500 Description Advantages:
>Save Money. Replace the broken diode stack bar only. Low cost and convenient
>Long lifetime. we use diode laser bars from Dilas the same. The newest Ausn mounting technology will be applied when assembly. After replacement. The handpiece will be as a new one. lifetime is much longer than before
>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.
FL 500W micro channel laser stack for repairing Anchrofree laser VS-MI-FL-500 Specifications:
Model No. |
VS-MI-FL-500 |
Application |
laser hair removal handpiece Repair And Replacement |
Operation Mode |
CW |
Power per submounts |
100W |
Number of submounts in one stack |
5 bars |
Central wavelength at 25℃ |
808 ± 5nm |
Typical Operation current |
50A |
Maximum Operating current |
90A |
Typical Threshold current |
8A |
Maximum Operating Voltage |
<10 V |
Fast Axis Divergence (FWHM) |
39º |
Slow Axis Divergence (FWHM) |
8º |
Operation Condition |
non-condensing atmosphere, cleaning room |
Expected lifetime |
10- 20 millions shots |
Typical pitch per bar |
2mm |
Cooling requirement |
|
Flow rate |
>2.0L/min |
Water Temperature |
27+-3°C |
Water Quality |
pure water |
cooling system |
Do not use any material that combination with copper would form galvanic elements |

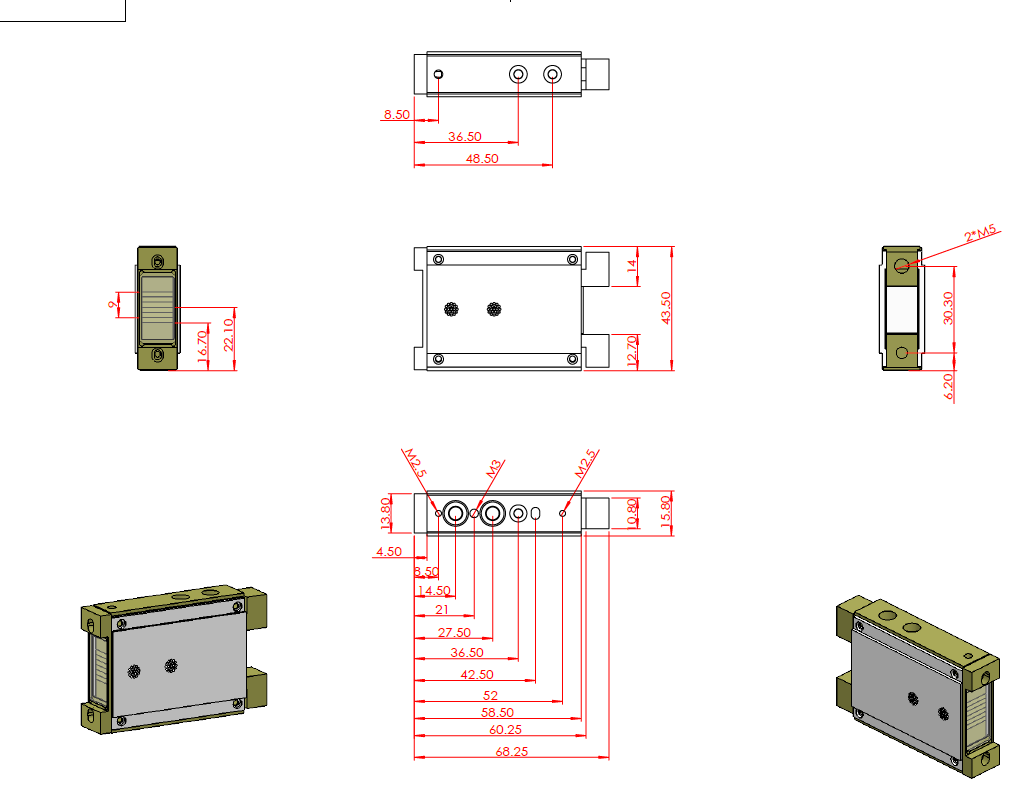

FL 500W micro channel laser stack for repairing Anchrofree laser VS-MI-FL-500 Dimension Scheme:
