Dilas 600W micro channel bar with lens added for collimation purpose
Dilas 600W micro channel bar with lens added for collimation purpose

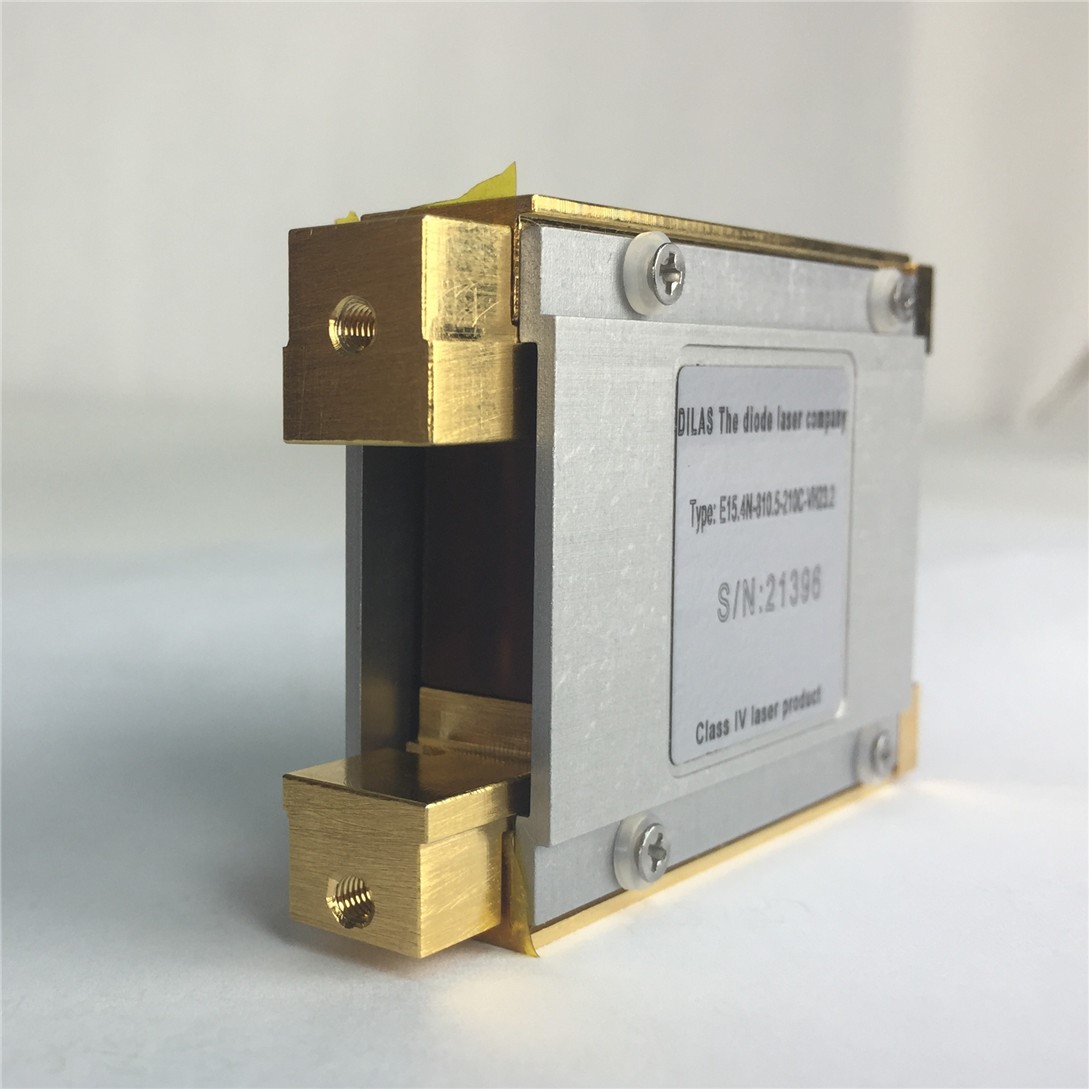

Dilas 600W micro channel bar with lens VS-MI-Dilas-600 pictures:
Dilas 600W micro channel bar with lens VS-MI-Dilas-600 Description:
This diode laser stack VS-MI-Dilas-600 is for relacement of micro chnnale diode laser stack of 600W laser hair removal devices. The original diode is from Dilas diode stack and we will make the same for diode laser bar replacement.
Dilas 600W micro channel bar with lens VS-MI-Dilas-600 Description Advantages:
>Save Money. Replace the broken diode stack bar only. Low cost and convenient
>Long lifetime. we use diode laser bars from Dilas the same. The newest Ausn mounting technology will be applied when assembly. After replacement. The handpiece will be as a new one. lifetime is much longer than before
>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.
Dilas 600W micro channel bar with lens VS-MI-Dilas-600 Specifications:
Model No. |
VS-MI-Dilas-600-ADSS |
Application |
laser hair removal handpiece Repair And Replacement |
Operation Mode |
CW |
Power per submounts |
100W |
Number of submounts in one stack |
6 bars |
Central wavelength at 25℃ |
808 ± 5nm |
Typical Operation current |
50A |
Maximum Operating current |
90A |
Typical Threshold current |
8A |
Maximum Operating Voltage |
<12 V |
Fast Axis Divergence (FWHM) |
39º |
Slow Axis Divergence (FWHM) |
8º |
Operation Condition |
non-condensing atmosphere, cleaning room |
Expected lifetime |
10- 20 millions shots |
Typical pitch per bar |
2mm |
Cooling requirement |
|
Flow rate |
>2.0 L/min |
Water Temperature |
27+-3°C |
Water Quality |
pure water |
cooling system |
Do not use any material that combination with copper would form galvanic elements |

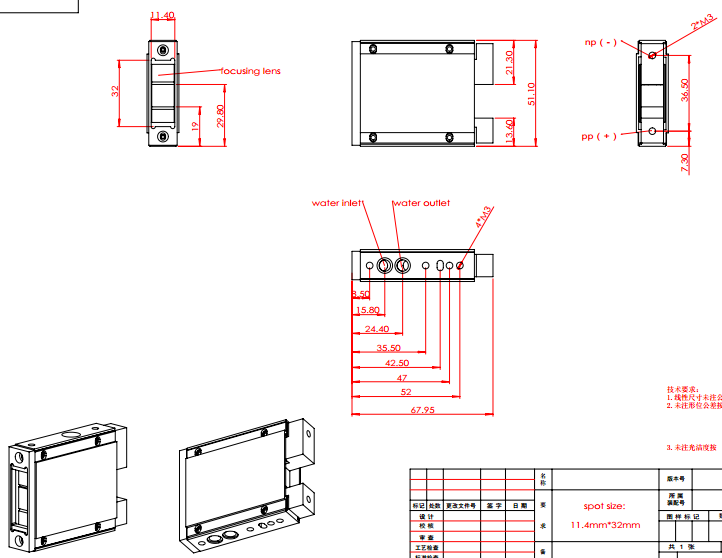

Dilas 600W micro channel bar with lens VS-MI-Dilas-600 Dimension Scheme:
