Alma laser stack replacement for soprano XL , Soprano XLi, Soprano ICE platinium

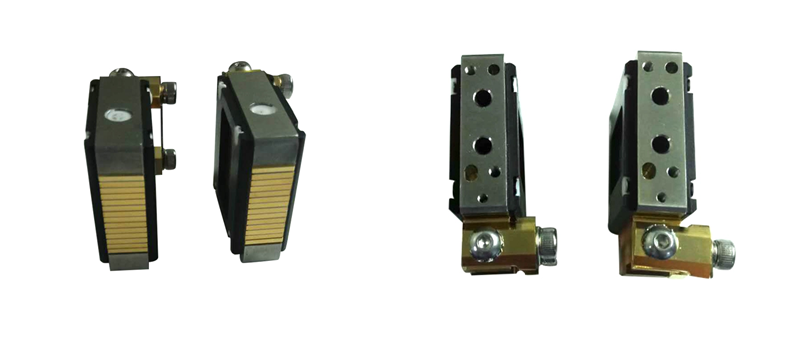

This VS-MI-Alma-12-1 Germany laser stack bar alma lasers is an 808nm diode laser stack, which has 12pcs 100w bars with black side plate. Electrodes are on the back of the stack.
It is used for 808nm diode laser hair removal handpiece repairing and replacement. Especially for : Alma diode laser soprano XLi handle and Alma laser soprano ICE tip.
Oriental-laser focused on diode laser bar mounting and assembling for more than 16 years. We provide various design of high power diode laser with bars from Germany or United stated. Micro channel cooler(MCC) or Macro cooler and Ausn solder are optional.
Micro channel cooler (MCC) diode laser stack is widely used in hair removal application. Oriental laser provide high reliability MCC diode laser vertically stack from 100W-2500W bars. Optical output power is from 60W cw up to 100W cw per bar. Typical wavelengths are 755nm, 808nm, 1060nm (others upon request). Besides regular stack, Oriental-Laser can also customize various stack upon our client’s requirements.
Alma laser stack replacement VS-MI-Alma-12-1 Germany laser stack bar alma lasers Advantages:
>Save Money. Replace the broken diode stack bar only. Low cost and convenient
>Long lifetime. we use diode laser bars from originally Alma the same. The newest Ausn mounting technology will be applied when assembly. After replacement. The handpiece will be as a new one. lifetime is much longer than before
>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.
Alma laser stack replacement VS-MI-Alma-12-1 Germany laser stack bar alma lasers Specifications:
| Model No. | VS-MI-Alma-12-1 |
| Application | laser hair removal handpiece Repair And Replacement Alma lasers |
| Operation Mode | CW |
| Power per submounts | 100W |
| Number of submounts in one stack | 12 bars |
| Central wavelength at 25℃ | 808 ± 5nm |
| Typical Operation current | 50A |
| Maximum Operating current | 90A |
| Typical Threshold current | 8A |
| Maximum Operating Voltage | <24 V |
| Fast Axis Divergence (FWHM) | 39º |
| Slow Axis Divergence (FWHM) | 8º |
| Operation Condition | non-condensing atmosphere, cleaning room |
| Expected lifetime | 10- 20 millions shots |
| Typical pitch per bar | 2mm |
| Cooling requirement | |
| Flow rate | >3.5L/min |
| Water Temperature | 27+-3°C |
| Water Quality | pure water |
| cooling system | Do not use any material that combination with copper would form galvanic elements |

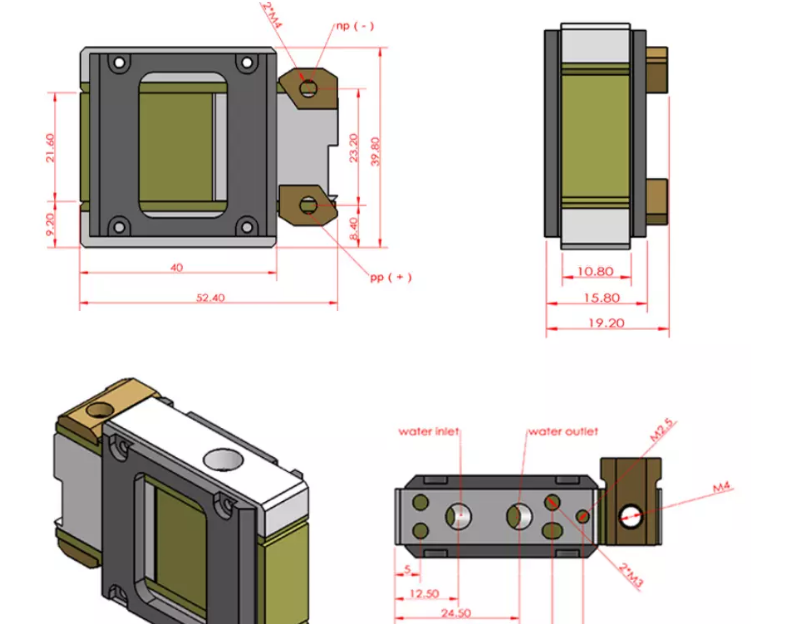

Alma laser stack replacement VS-MI-Alma-12-1 Germany laser stack bar alma lasers Scheme:
