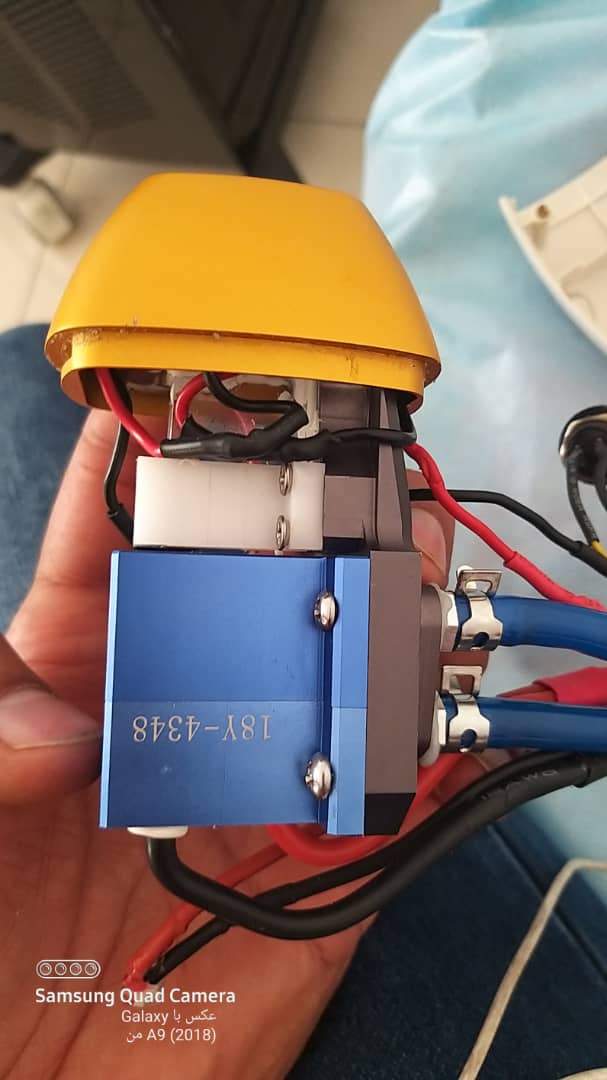

600W Macro Channel Diode Laser Stacks 18Y-4348/  For Lefis Laser System

DVS-800 Macro channel diode details:

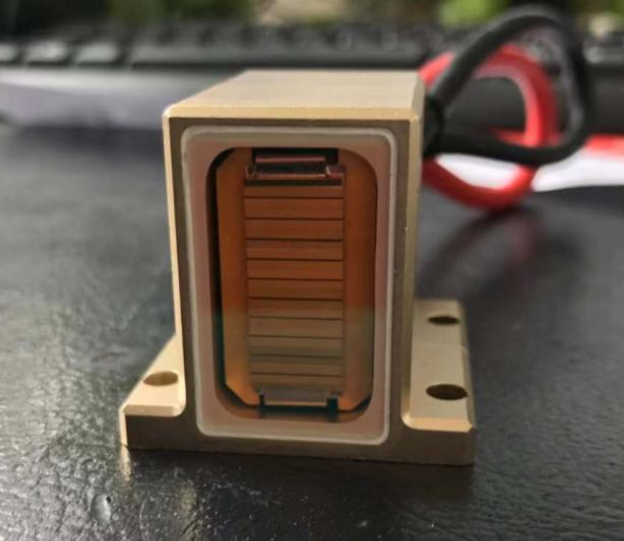

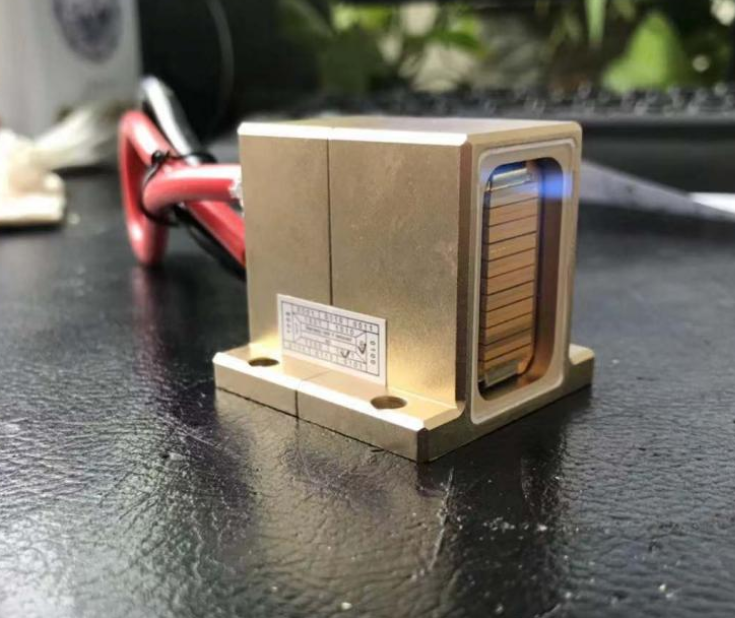

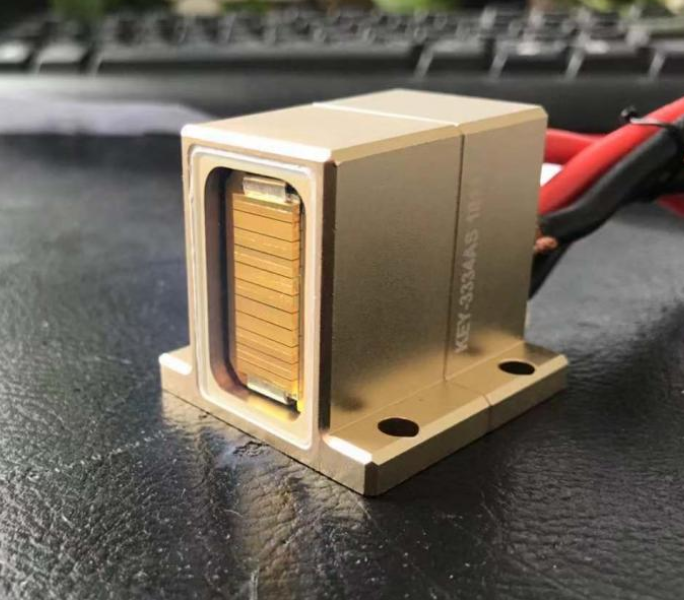

This DVS-800 Macro channel diode laser stack 10bar Model A for hair removal which has 10bars with a aluminum shell. The water holes are on the back of the stack. Electrodes are on the back of stack also.

This diode laser stack usually burn out after working 1year. Then it need to be refresh. Or you can buy a new one to replace the old one.

DVS-800 Macro channel diode Repairing procedure

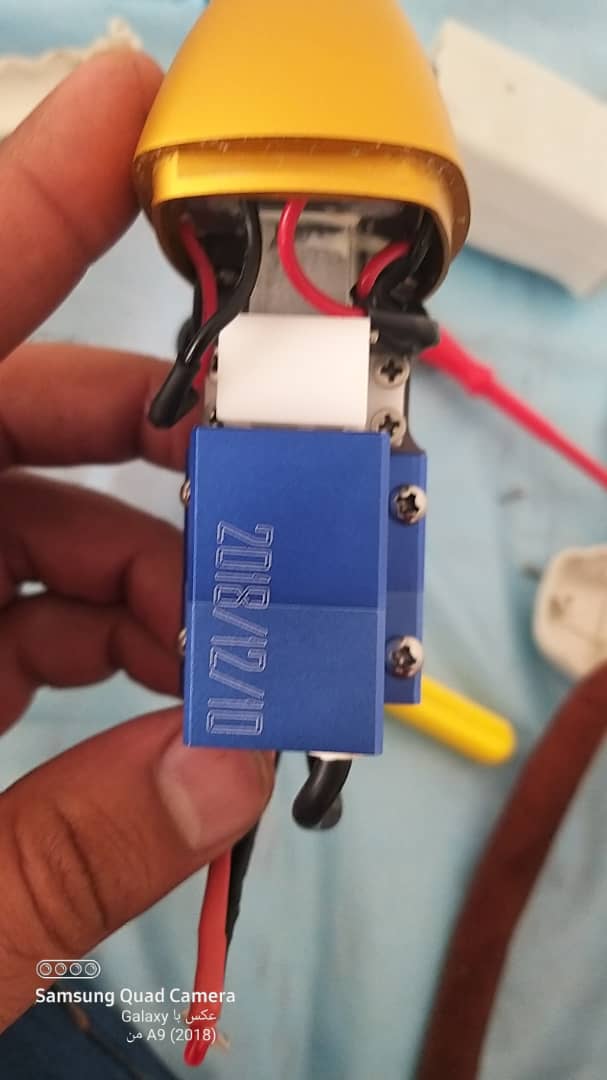

>Choice A: Send the old broken handpiece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new handpiece back to you.

>Choice B:  if you have basic assembly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.

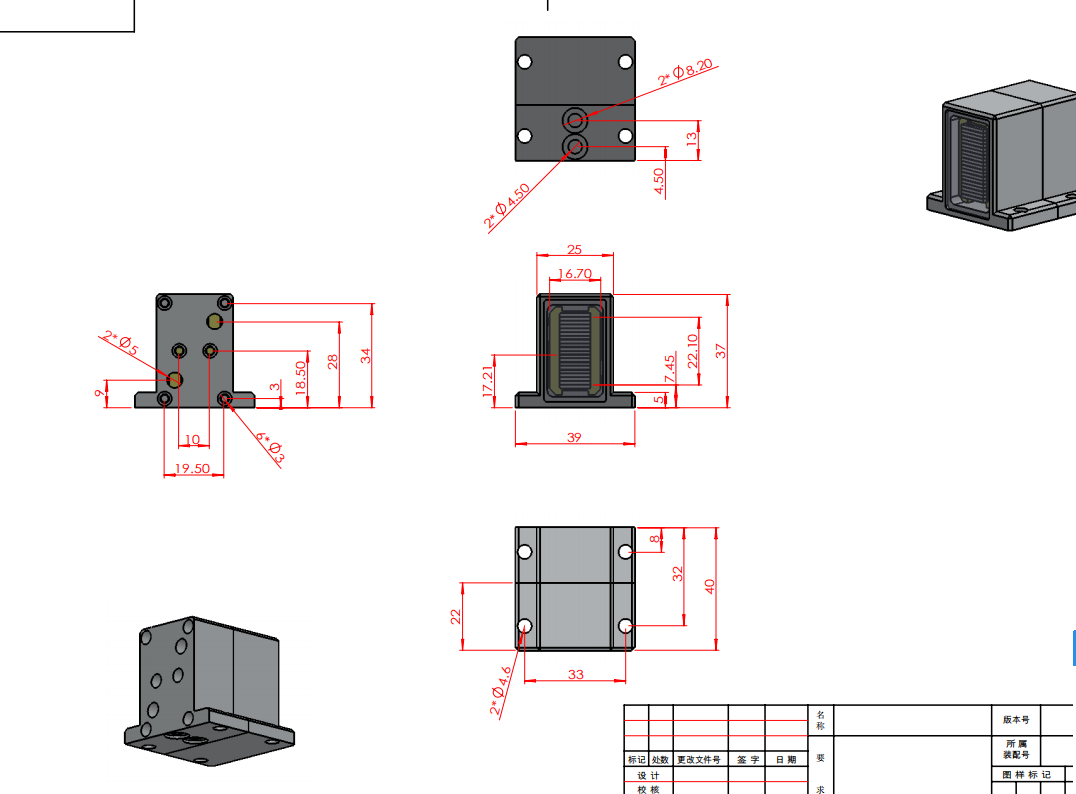

>Choice C: Measure your stack and confirm the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old handpiece.



DVS-800 Macro channel diode Advantages

>Save Money. Replace the broken diode stack only. Low cost and convenient

>Long lifetime.  we use diode laser bars from Germany. The newest Ausn mounting technology will be applied when repairing. After repair. The handpiece will be as a new one. lifetime is much longer than before

>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.

DVS-800 Macro channel diode Specifications:

Model No.	VS-MA-80-10 Model A/DVS-800
Application	laser hair removal handpiece Repair And Replacement
Operation Mode	CW
Power per submounts	80W
Number of submounts in one stack	10bars
Central wavelength at 25℃	808 ± 5nm
Typical Operation current	40A
Maximum Operating current	50A
Typical Threshold current	8A
Maximum Operating Voltage	<20V
Fast Axis Divergence (FWHM)	39º
Slow Axis Divergence (FWHM)	8º
Operation Condition	non-condensing atmosphere, cleaning room
Expected lifetime	10 millions shots
Typical pitch per bar	2mm
Cooling requirement
Flow rate	>3.5L/min
Water Temperature	27+-3°C
Water Quality	pure water
cooling system	Do not use any material that combination with copper would form galvanic elements
