400W vertical diode laser bar for 808nm hair removal machine hand piece repairing



400W vertical diode laser bar VS-MI-FL-400 Description:

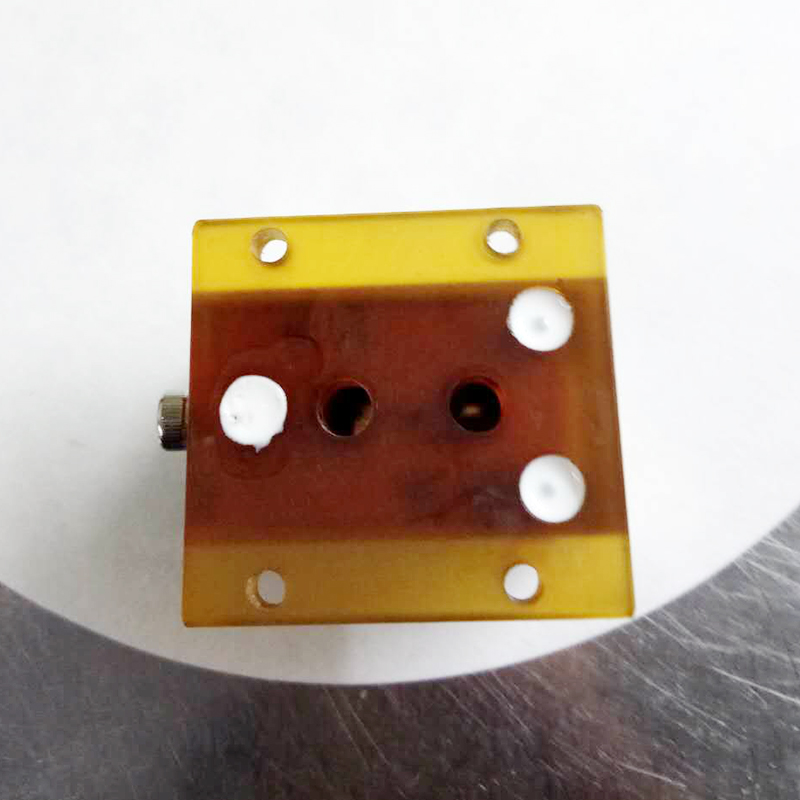

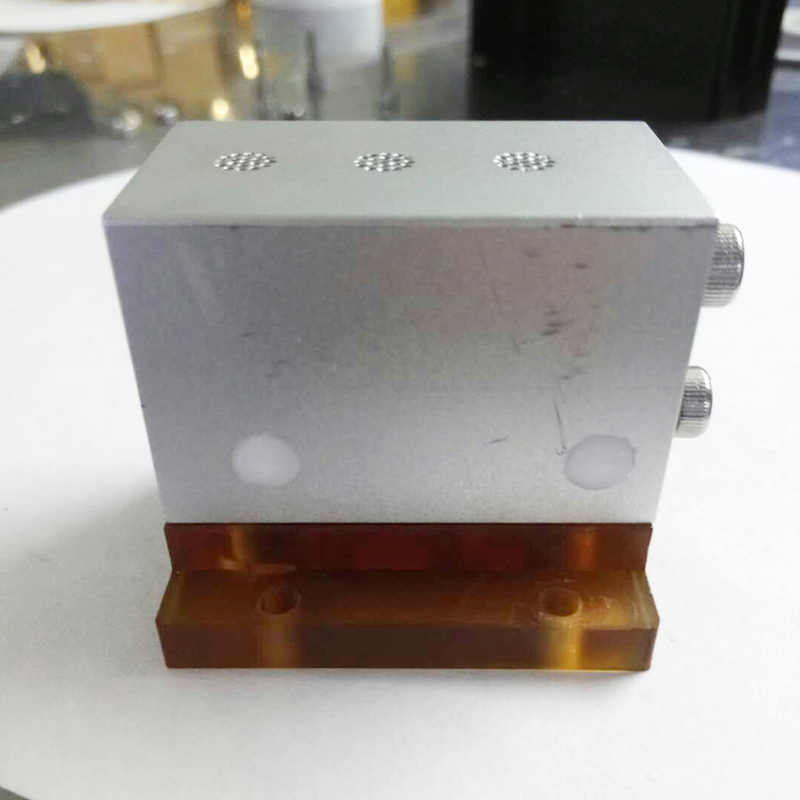

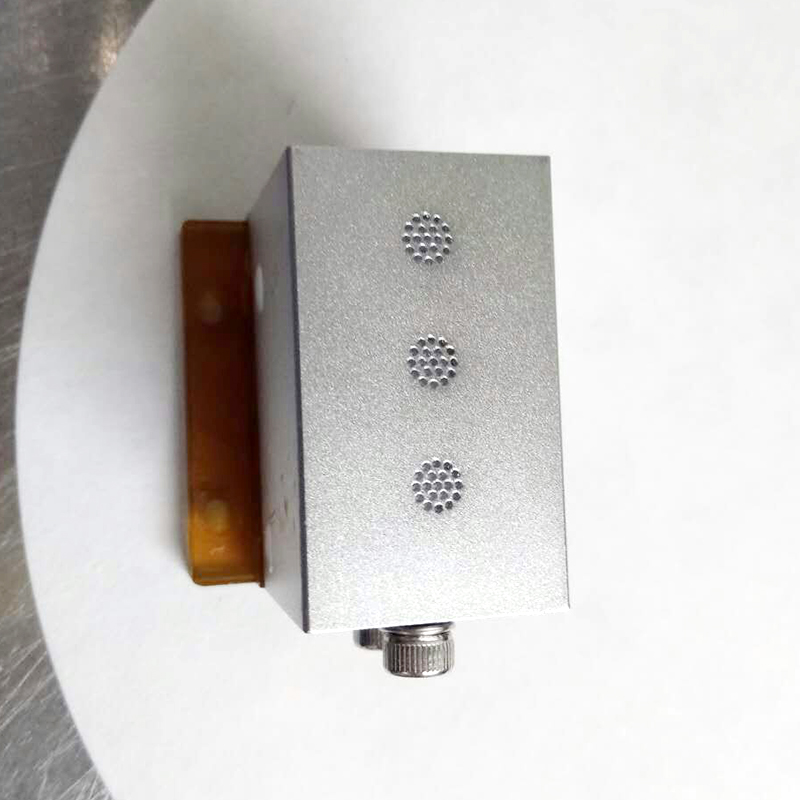

This VS-MI-FL-400 is an 808nm diode laser stack, which has 3pcs 100w bars with black side plate. Electrodes are on the back of the stack.

It is used for 808nm diode laser hair removal handpiece repairing and replacement. Especially for : Aroma diode

Oriental-laser focused on diode laser bar mounting and assembling for more than 16 years. We provide various design of  high power diode laser with bars from Germany or United stated. Micro channel cooler(MCC) or Macro cooler and Ausn solder are optional.











400W vertical diode laser bar VS-MI-FL-400 Advantages:

>Save Money. Replace the broken diode stack bar only. Low cost and convenient

>Long lifetime.  we use diode laser bars from originally Aroma the same. The newest Ausn mounting technology will be applied when assembly. After replacement. The handpiece will be as a new one. lifetime is much longer than before

>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.





400W vertical diode laser bar VS-MI-FL-400 Specifications:

Model No.	VS-MI-FL-400
Application	laser hair removal handpiece Repair And Replacement
Operation Mode	CW
Power per submounts	100W
Number of submounts in one stack	4 bars
Central wavelength at 25℃	808 ± 5nm
Typical Operation current	50A
Maximum Operating current	90A
Typical Threshold current	8A
Maximum Operating Voltage	<8 V
Fast Axis Divergence (FWHM)	39º
Slow Axis Divergence (FWHM)	8º
Operation Condition	non-condensing atmosphere, cleaning room
Expected lifetime	10- 20 millions shots
Typical pitch per bar	2mm
Cooling requirement
Flow rate	>2.0 L/min
Water Temperature	27+-3°C
Water Quality	pure water
cooling system	Do not use any material that combination with copper would form galvanic elements

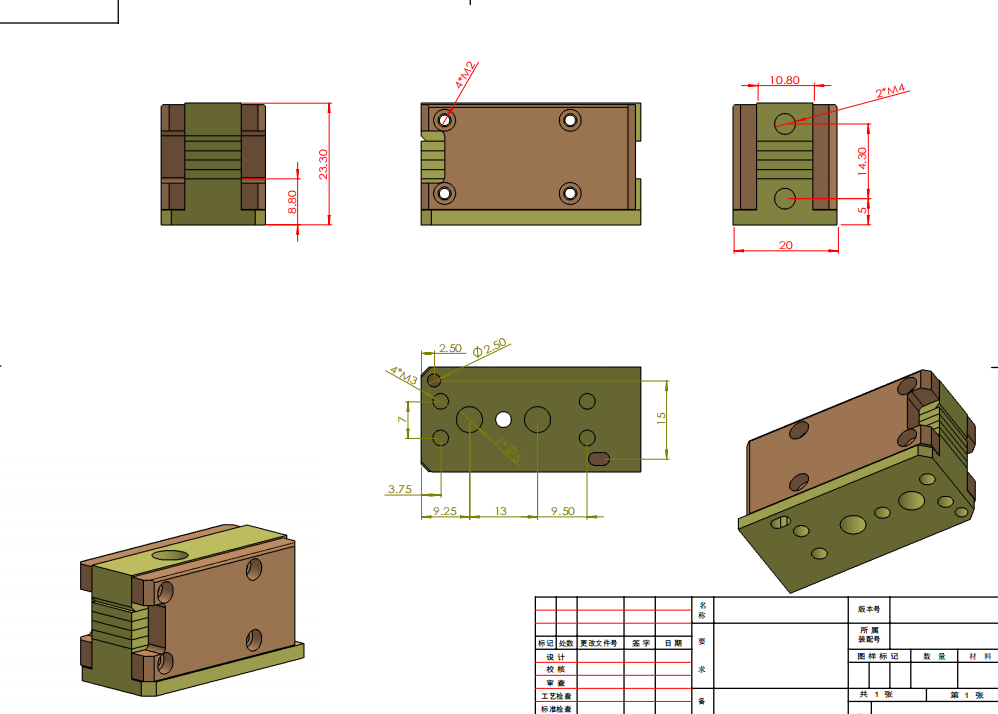

400W vertical diode laser bar VS-MI-FL-400 Dimension Scheme:



Any more questions kindly add whatsapp 0086-13522789042.
