400W micro channel laser bar for hair removal system handle repairing

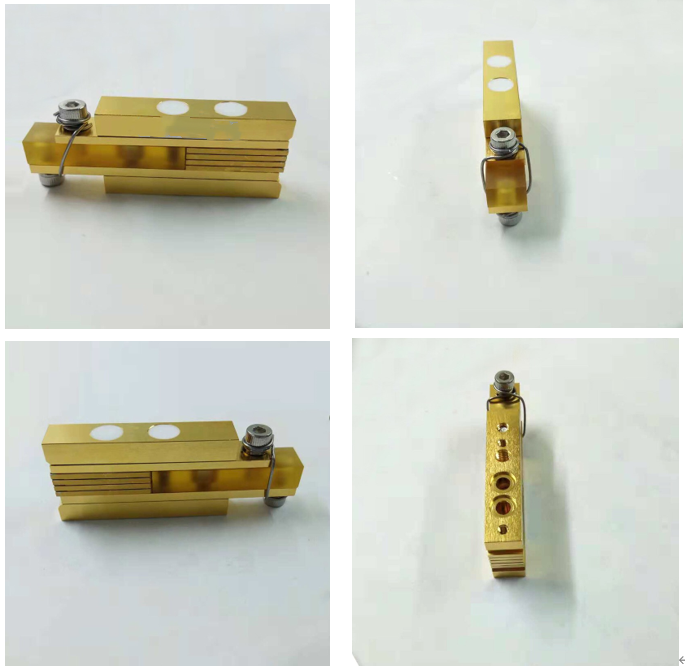

400W micro channel laser bar for hair removal system VS-MI-100-4-FL diode laser bar description:
This VS-MI-100-4-FL stack is for 400W USA Dilas diode laser bar repairing service. Please find the details in the following:
Oriental-laser focused on diode laser bar assembling for more than 16 years and we have seen various alma soprano diode laser stacks.Also we can use the same Jenoptik bar like Alma used to recondition the power the laser soprano power. And also we can repair other brand like Alma Lasers, Zema laser, Aroma Laser and also any china branded.
400W micro channel laser bar for hair removal system VS-MI-100-4-FL repairing service procedure
>Choice A: Send the old broken handpiece to our factory. We will do the process of checking , repairing, cleaning and etc. Then send the fresh new handpiece back to you.
>Choice B: if you have basic assembly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack.
>Choice C: Measure your stack and confirm the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old handpiece.
400W micro channel laser bar for hair removal system VS-MI-100-4-FL diode laser bar repairing service Advantages
>Save Money. Replace the broken diode stack only. Low cost and convenient
>Long lifetime. we use diode laser bars from Germany also we have laser bar from USA dilas and Coherent.The newest Ausn mounting technology will be applied when repairing. After repair. The handpiece will be as a new one. lifetime is much longer than before
>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.
400W micro channel laser bar for hair removal system VS-MI-100-4-FL diode laser bar Specification
| Model No | VS-MI-100-4-FL |
| Application | Diode Laser Handle Piece Repair And Replacement |
| Operation Mode | CW |
| Number of submounts | 4 Bars |
| Power per submounts | 100W |
| Central wavelength at 25℃ | 808 ± 5nm |
| Typical Operation current | 90A |
| Typical Threshold current | 15A |
| Maximum Operating Voltage | 8V |
| Fast Axis Divergence (FWHM) | 39º |
| Slow Axis Divergence (FWHM) | 8º |
| Expected lifetime | >10000 Hours |
| Typical pitch per bar | 1.8mm |
| Cooling | |
| Flow rate | 0.3L/min ±10% / Bar |
| Water Temperature | 25+-3°C |
| Water Quality | Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm |
| cooling system | Do not use any material that combination with copper would form galvanic elements |

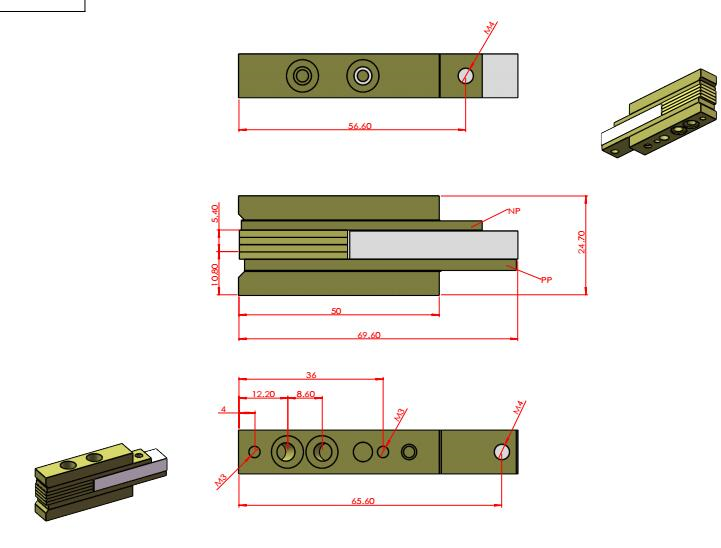

400W micro channel laser bar for hair removal system VS-MI-100-4-FL diodelaser bar dimensions
