320W micro channel laser bar stack for repairing Syneron Brand Elos system

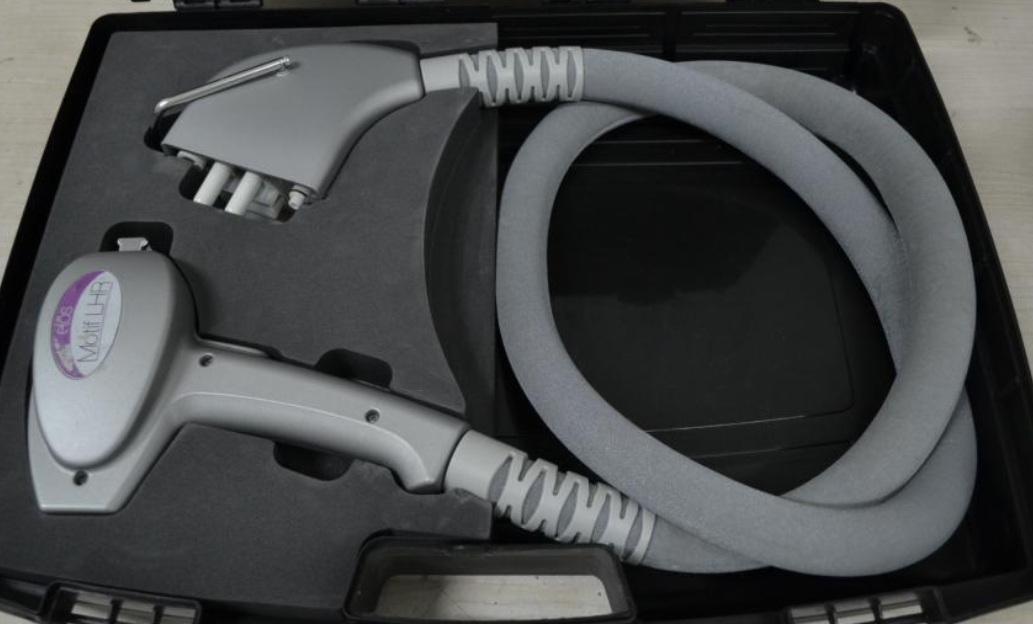

Laser bar stack for repairing Syneron Brand Elos system VS-MI-Syneron-320 pictures:
Laser bar stack for repairing Syneron Brand Elos system VS-MI-Syneron-320 Description:

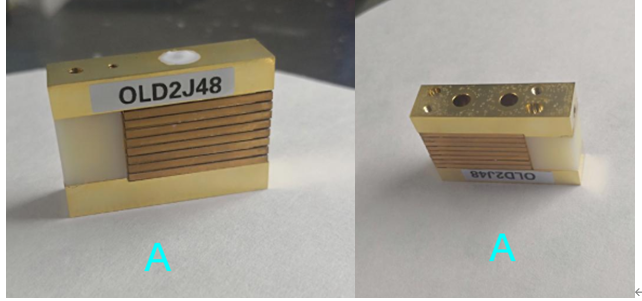

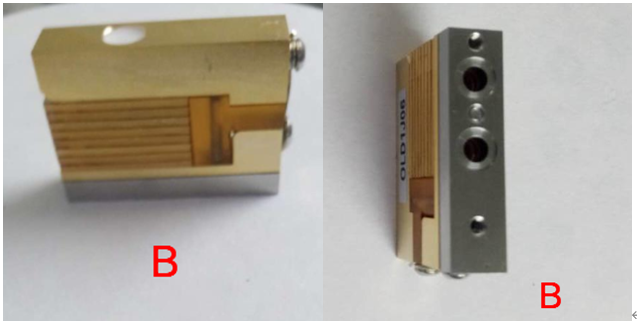

This diode laser stack VS-MI-Syneron-320 is for relacement of micro channel diode laser stack of 320W laser hair removal devices of Syneron Elos. The original diode is from Syneron diode stack and we will make the same for diode laser bar replacement. There are two kind of stack water way as the aboved showed A and B. You should confirm there different water way. But the power are the same.
Laser bar stack for repairing Syneron Brand Elos system VS-MI-Syneron-320 Description Advantages:
>Save Money. Replace the broken diode stack bar only. Low cost and convenient
>Long lifetime. we use diode laser bars from Syneron the same. The newest Ausn mounting technology will be applied when assembly. After replacement. The handpiece will be as a new one. lifetime is much longer than before
>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.
Laser bar stack for repairing Syneron Brand Elos system VS-MI-Syneron-320 Specifications:
Model No. |
VS-MI-Syneron-320 |
Application |
laser hair removal handpiece Repair And Replacement |
Operation Mode |
CW |
Power per submounts |
40W |
Number of submounts in one stack |
8 bars |
Central wavelength at 25℃ |
808 ± 5nm |
Typical Operation current |
50A |
Maximum Operating current |
60A |
Typical Threshold current |
8A |
Maximum Operating Voltage |
<12 V |
Fast Axis Divergence (FWHM) |
39º |
Slow Axis Divergence (FWHM) |
8º |
Operation Condition |
non-condensing atmosphere, cleaning room |
Expected lifetime |
10- 20 millions shots |
Typical pitch per bar |
2mm |
Cooling requirement |
|
Flow rate |
>3.5L/min |
Water Temperature |
27+-3°C |
Water Quality |
pure water |
cooling system |
Do not use any material that combination with copper would form galvanic elements |
Laser bar stack for repairing Syneron Brand Elos system VS-MI-Syneron-320 Dimension Scheme:

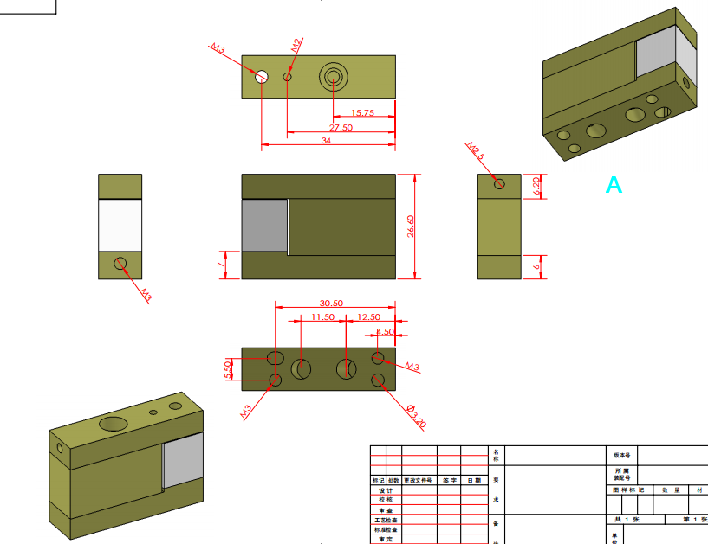

VS-MI-Syneron-320-A

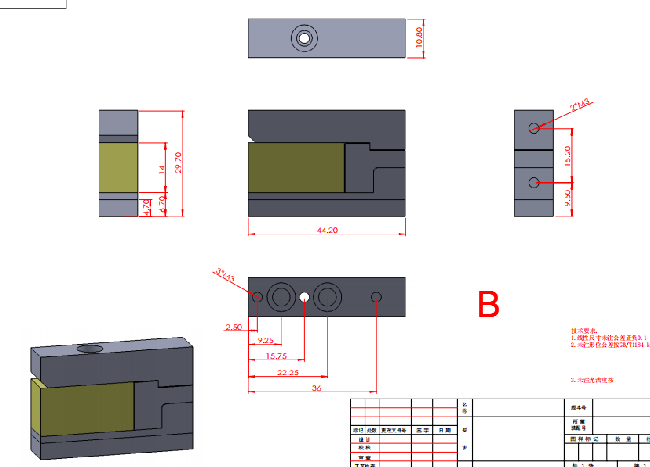

VS-MI-Syneron-320-B
Any more questions please contact Kelly Laser whatsapp 0086-13522789042
