300W Dilas Laser bar stack for ADSS laser handle repairing

300W Dilas Laser bar stack for ADSS old handle piece repairing

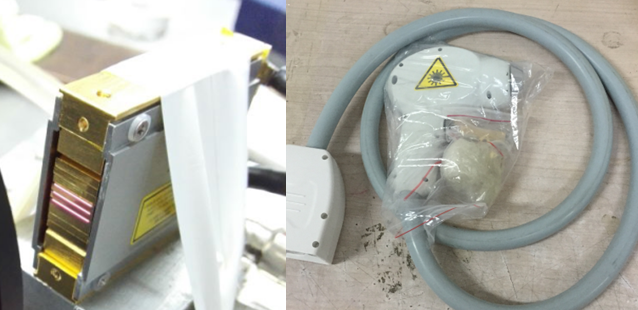

300W Dilas Laser bar stack VS-MI-Dilas-300-ADSS Details of pictures:

300W Dilas Laser bar stack VS-MI-Dilas-300-ADSS Description:

This diode laser stack VS-MI-Dilas-300-ADSS is for relacement of micro chnnale diode laser stack of ADSS 300W laser hair removal devices. The original diode is from Dilas diode stack and we will make the same for diode laser bar replacement.

300W Dilas Laser bar stack VS-MI-Dilas-300-ADSS Description Advantages:

>Save Money. Replace the broken diode stack bar only. Low cost and convenient

>Long lifetime. we use diode laser bars from Dilas the same. The newest Ausn mounting technology will be applied when assembly. After replacement. The handpiece will be as a new one. lifetime is much longer than before

>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.

300W Dilas Laser bar stack VS-MI-Dilas-300-ADSS Specifications:

Model No.	VS-MI-Dilas-300-ADSS
Application	laser hair removal handpiece Repair And Replacement
Operation Mode	CW
Power per submounts	100W
Number of submounts in one stack	3 bars
Central wavelength at 25℃	808 ± 5nm
Typical Operation current	50A
Maximum Operating current	90A
Typical Threshold current	8A
Maximum Operating Voltage	<6 V
Fast Axis Divergence (FWHM)	39º
Slow Axis Divergence (FWHM)	8º
Operation Condition	non-condensing atmosphere, cleaning room
Expected lifetime	10- 20 millions shots
Typical pitch per bar	2mm
Cooling requirement
Flow rate	>2.0 L/min
Water Temperature	27+-3°C
Water Quality	pure water
cooling system	Do not use any material that combination with copper would form galvanic elements

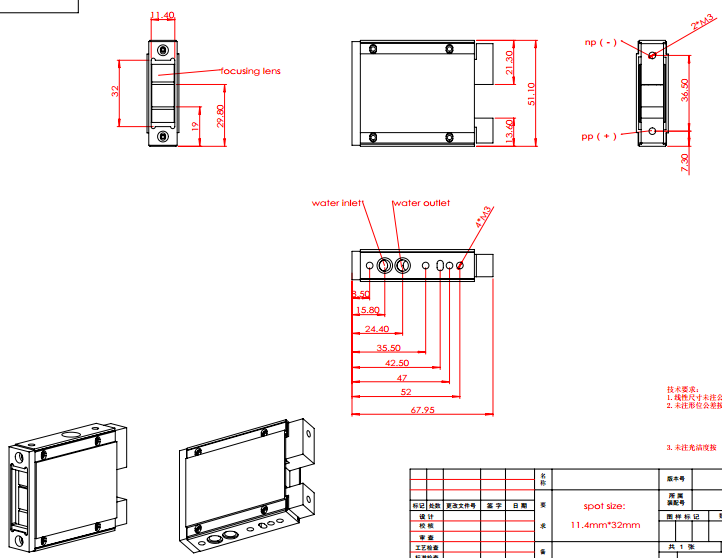

300W Dilas Laser bar stack VS-MI-Dilas-300-ADSS Dimension Scheme:

Any more questions please kindly contact kelly lasers whatsapp 0086-13522789042
