2000W high power vertical design micro channel laser stack for sale
2000W high power vertical design micro channel laser stack for sale

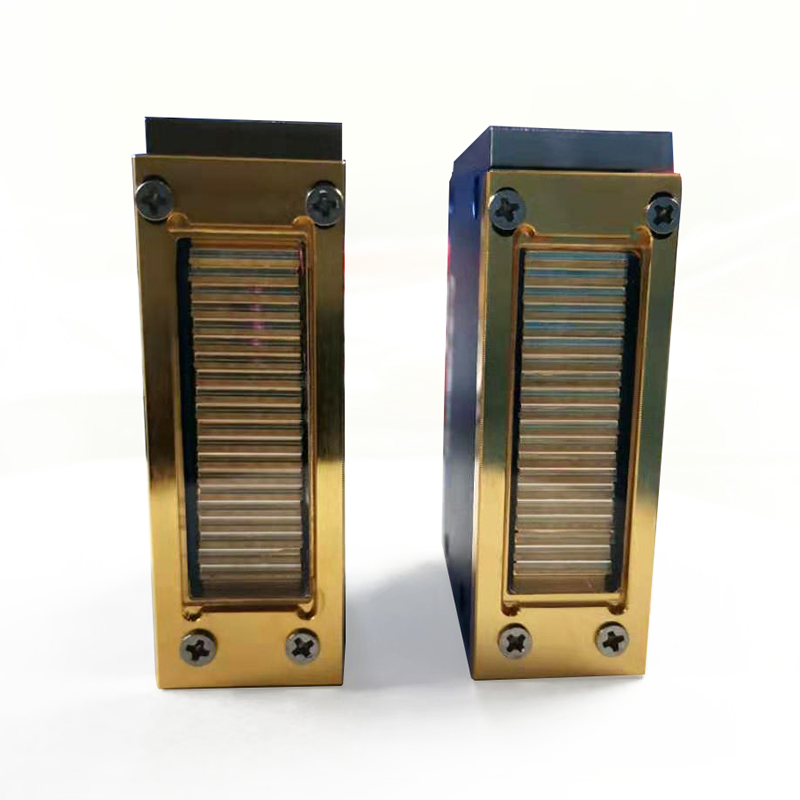

2000W high power vertical design micro channel laser stack VS-MI-ALMA-2000 Description:
This diode laser stack VS-MI-ALMA-2000 is for relacement of micro channel diode laser stack of 200W laser hair removal devices of Alma lasers. The original diode is from Alma diode stack and we will make the same for diode laser bar replacement. Also it can be used for high power diode laser stack in industrial application
2000W high power vertical design micro channel laser stack VS-MI-ALMA-2000 Description Advantages:
>Save Money. Replace the broken diode stack bar only. Low cost and convenient
>Long lifetime. we use diode laser bars from Syneron the same. The newest Ausn mounting technology will be applied when assembly. After replacement. The handpiece will be as a new one. lifetime is much longer than before
>All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you.
2000W high power vertical design micro channel laser stack VS-MI-ALMA-2000 Specifications:
Model No. |
VS-MI-ALMA-2000 |
Application |
laser hair removal handpiece Repair And Replacement |
Operation Mode |
CW |
Power per submounts |
100W |
Number of submounts in one stack |
20 bars |
Central wavelength at 25℃ |
808 ± 5nm |
Typical Operation current |
50A |
Maximum Operating current |
90A |
Typical Threshold current |
8A |
Maximum Operating Voltage |
<40 V |
Fast Axis Divergence (FWHM) |
39º |
Slow Axis Divergence (FWHM) |
8º |
Operation Condition |
non-condensing atmosphere, cleaning room |
Expected lifetime |
10- 20 millions shots |
Typical pitch per bar |
2mm |
Cooling requirement |
|
Flow rate |
>3.5L/min |
Water Temperature |
27+-3°C |
Water Quality |
pure water |
cooling system |
Do not use any material that combination with copper would form galvanic elements |

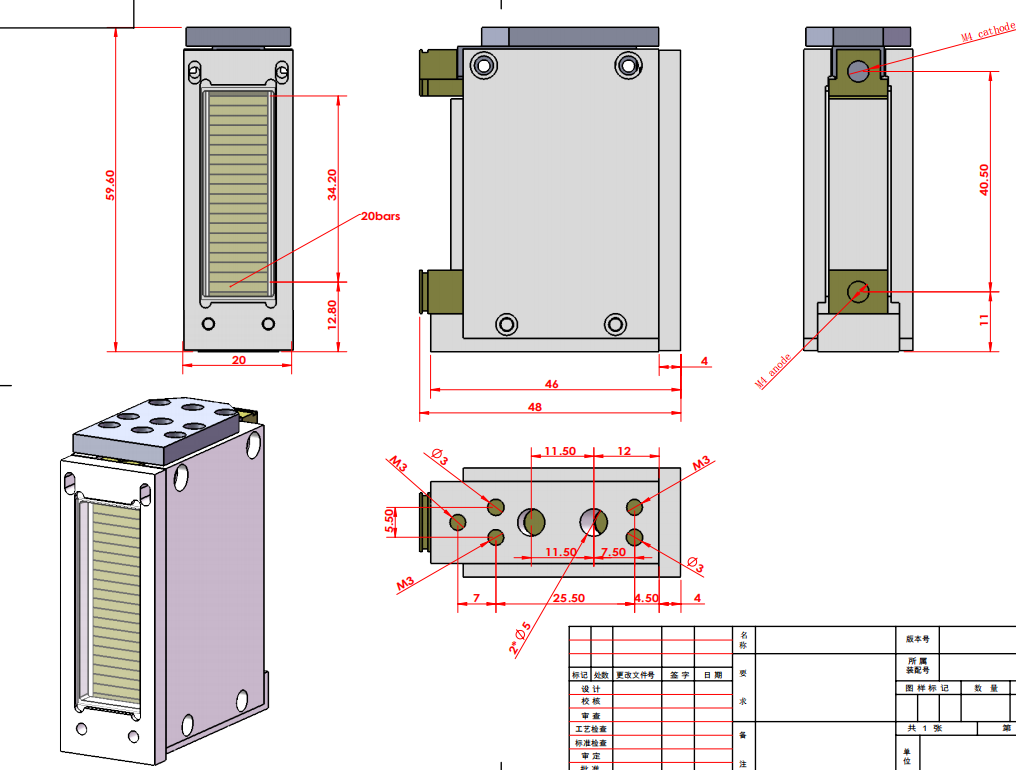

2000W high power vertical design micro channel laser stack VS-MI-ALMA-2000 Dimension Scheme:
Any more interest please contact kelly lasers by whatsapp 0086-13522789042
